| Electrical Specifications 6 m | |
| Frequency Range: | 50 – 50.5 MHz |
| Free Space Forward Gain: | 12.3 dBi |
| Front to Back Ratio: | 23 dB |
| 3 dB Horizontal Beamwidth: | 41.8° |
| Polarization: | Horizontal |
| Nominal Input Impedance: | 50 Ohms |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 800 WÂ |
| Matching Method: | Direct feed through common mode balun |
| Connector: | “N” |
| Mechanical Specifications 6 m | |
| Number of elements: | 7 |
| Element Diameter: | Tapered elements. Center tube 12mm, outer 10 and 8 mm |
| Longest element: | 3.1 m |
| Element Mounting Position: | Below the Boom |
| Balun and Connector | Included |
| Electrical Specifications 4 m | |
| Frequency Range: | 70 – 70.5 MHz |
| Free Space Forward Gain: | 13.5 dBi |
| Front to Back Ratio: | 24 dB |
| 3 dB Horizontal Beamwidth: | 39.2° |
| Polarization: | Horizontal |
| Nominal Input Impedance: | 50 Ohms |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 700 W |
| Matching Method: | Direct feed through common mode balun |
| Connector: | “N” |
| Mechanical Specifications 4 m | |
| Number of elements: | 8 |
| Element Diameter: | Tapered elements. Center tube 12mm, outer 10mm |
| Longest element: | 2.2 m |
| Element Mounting Position: | Below the Boom |
| Balun and Connector | Included |
| Common Mechanical Specifications | |
| Boom Length: | 8.95 m |
| Boom Size: | 40 x 40 mm |
| Number of Boom Pieces: | 4 |
| Guy rope support: | Yes – Included |
| Mounting Mast Diameter: | 43 – 70 mm 1-1/4″ – 2-3/4″ |
| Survival Wind Speed: | 150 km/h |
| Transportation Length: | 2.45 m |
| Antenna Weight: | 15 kg |
6m and 4m Super Yagi Antenna PA5070-15-9-2CBGP Separate Connectors

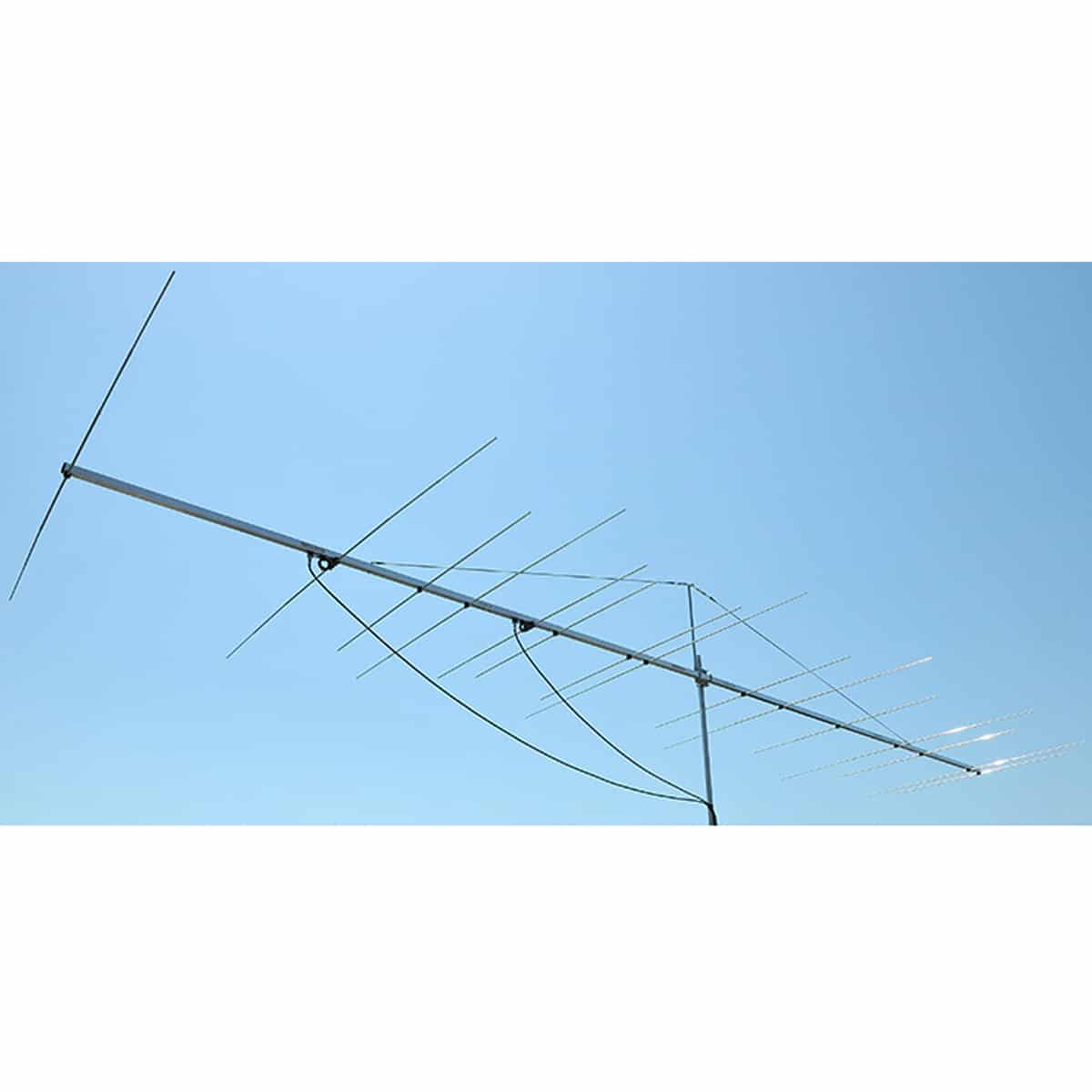

Two Band Yagi-Antenna 6m and 4m PA5070-15-9-2CBGP 50MHz and 70MHz
DualBand Super Yagi Antenna PA5070-15-9-2CBGP Bracket Guy Rope View
50MHz – 70MHz Super Yagi Antenna PA5070-15-9-2CBGP Tapered elements view
