MAT 1F QRP

mAT-1F Automatic Antenna Tuner for Yaesu FTX-1F, HF/50MHz 10W, Supports Long Wire & 50Ω Antennas

The mAT-1F is an antenna tuner designed specifically for the Yaesu FTX-1 Field and cannot be used with other transmitters! It is fully compatible with the original brand’s antenna tuner, allowing users to operate it directly from the transmitter’s front panel just as they would with the original tuner.

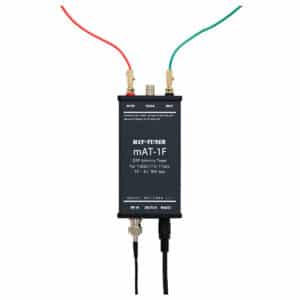

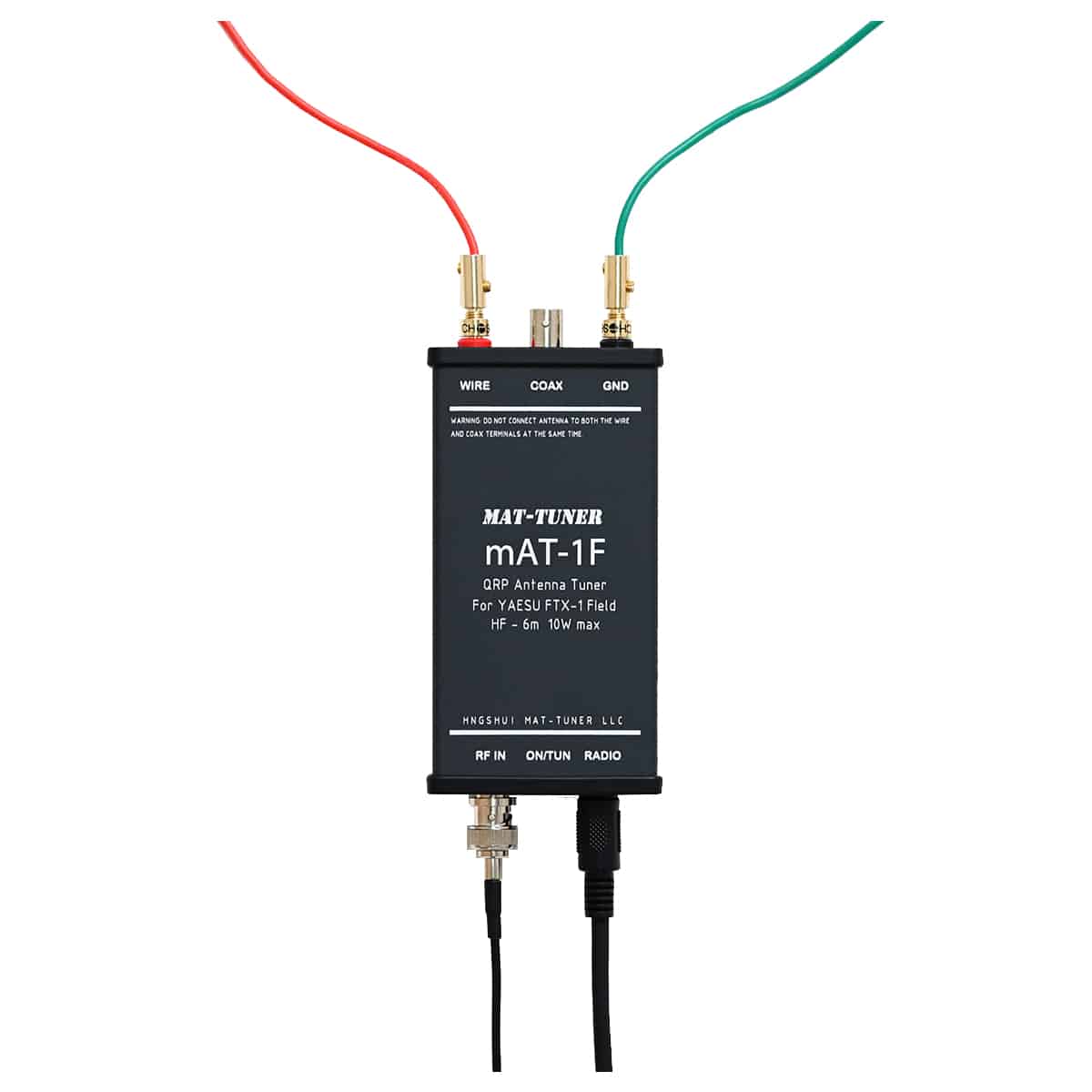

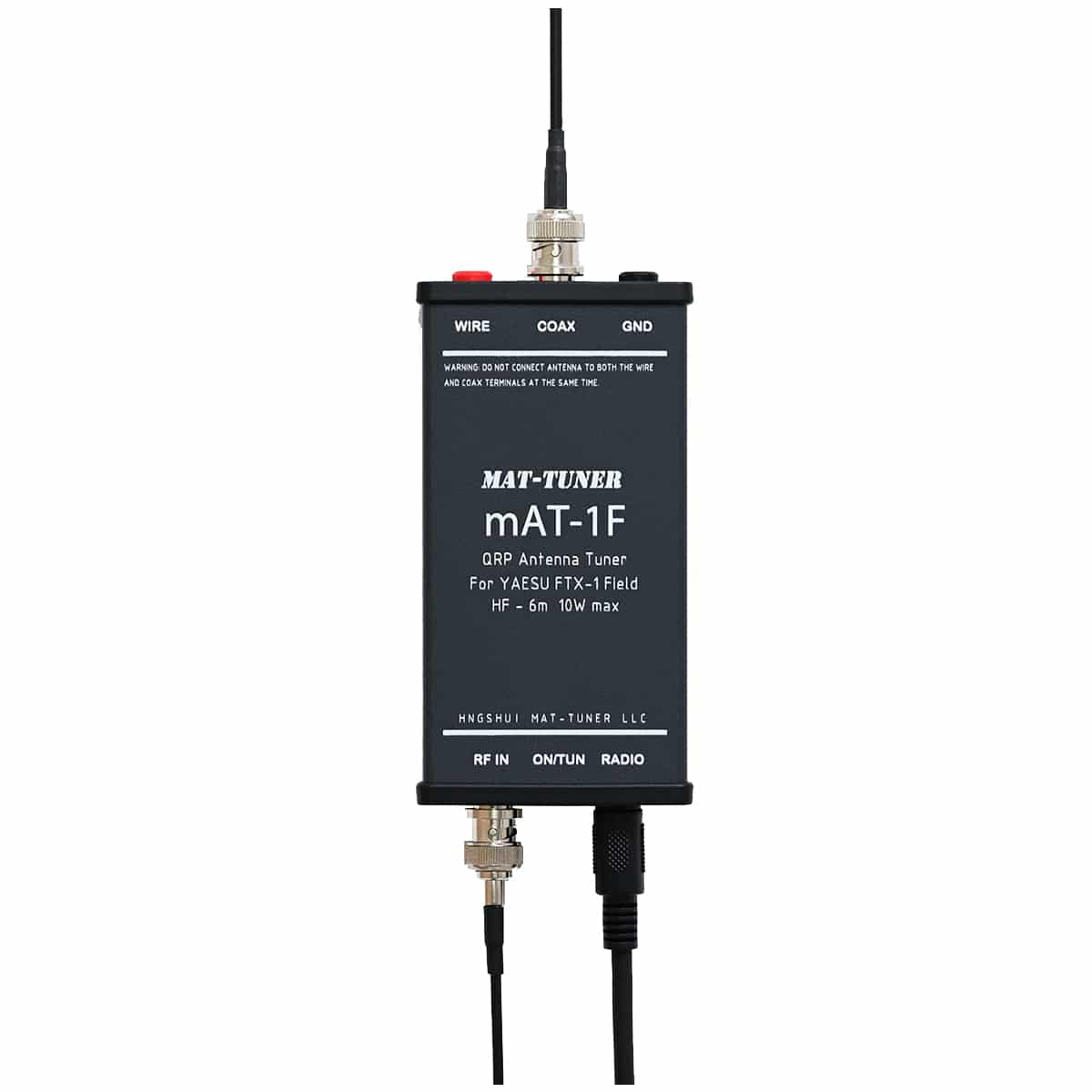

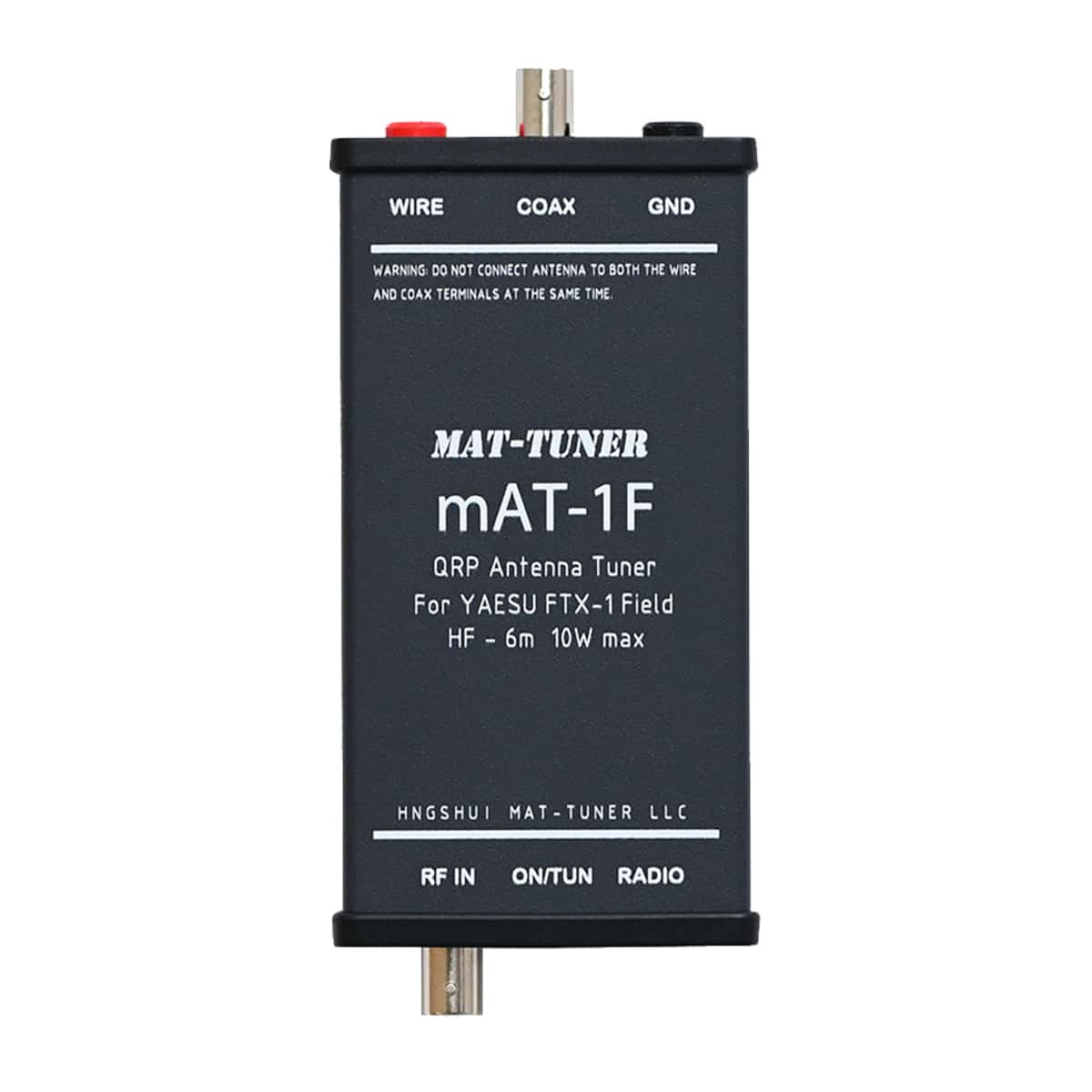

The top panel features two antenna connectors: a BNC jack and banana terminals. These allow users to operate either a coax-fed antenna or a wire antenna, providing excellent flexibility and convenience.

The bottom panel also includes two connectors: the RF input jack and the control connector. The RF input jack connects to the transmitter’s HF antenna jack through a coaxial feed line, while the control cable jack connects to the transmitter’s “TUNER” connector using the supplied mAT-CF control cable.

Key Features
Compatibility Designed specifically for Yaesu FTX-1 Field transmitter
Antenna Connectors BNC jack and banana terminals for coax-fed or wire antennas
Control Interface Full front-panel control compatibility with original tuner
RF Input Connects to transmitter’s HF antenna connector via coaxial cable
Control Connection Uses supplied mAT-CF control cable to transmitter’s “TUNER” connector
Operation Direct control from transmitter’s front panel

Technical Specifications
Frequency Range 1.8 – 54 MHz
Maximum RF Power 10W (SSB/CW/Digital)
Impedance Range 5 – 1500 Ω
Tuning Time 5 seconds or less
Memory Channels 16000
Antenna Compatibility Dipoles, verticals, Vees, beams, wire or any coax-fed antenna
Power Supply Provided by transmitter through control cable (max 0.1A)
Operating Temperature -10°C ~ +50°C
Dimensions (L x W x H) 142 × 67 × 28 mm
Weight 200 g
Construction Metal shell, aluminum milling panel
