Meets the strict environmental requirements for survival craft radio

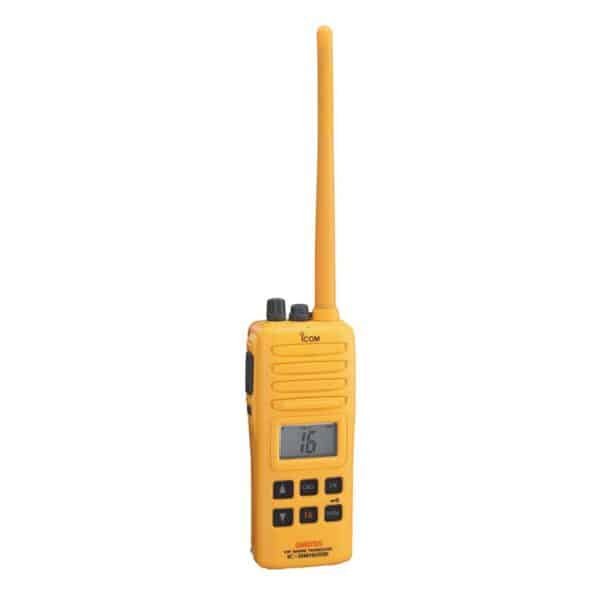

The IC-GM1600E meets temperature, thermal shock, vibration and drop resistant (from 1 m height) requirements. After passing those environmental tests, the IC-GM1600E retains 1m depth waterproof construction as specified by IMO resolutions A.694 (17), MSC149 (77) and related specifications.
Optional high capacity Lithium battery
BP-234, has superior low temperature characteristics. Provides more than 8 hours operating time even at –20°C. (Duty cycle: Tx: Rx: Stand-by = 6: 6: 48)
- Large keypad with positive button action
- Wide viewing angle LCD display
- Meets MED 2014/90/EU, “Wheel mark” requirements
Other features:
- One touch access to Channel 16 and call channel
- Highly visible yellow colored body
- Bright LED indicator on the top of panel
Supplied accessories: (* Depending on version)
• Battery pack, BP-252*
• Battery charger, BC-173*
• AC adapter, BC-147*
• Belt clip, MB-103Y
• Antenna, FA-S61V (fixed)
• Neck strap
Frequency range: 156.300–156.875MHz
Dimensions (W×H×D) (Projections not included): 65×145×44 mm
Weight (approx.): 385g (With BP-234)
Current drain:
– Transmit (High): 1.0A (2W output)
– Max. audio: 200mA
Sensitivity (at 12dB SINAD): –2dBμ typ.
Intermodulation rejection: 68dB
Audio output power (10% dist./ 8Ω load): 200mW
RF output power: 2/1W
Waterproof protection: Specified as IMO Res. MSC.149(77)
Operating time (approx.): Specified as IMO Res. MSC.149(77)
Batterij, BP-252
Lader, BC-173
Adapter, BC-147SE
Riemclip, MB-103Y
Antenne, FA-S61V
Nekkoord
