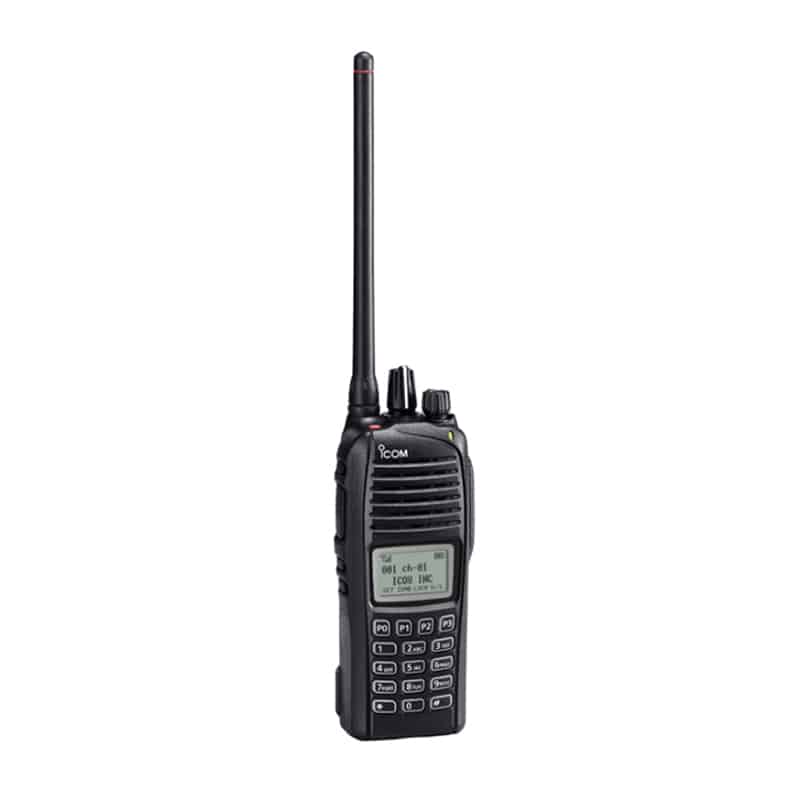

Icom IC-F4262DT Digitaal+Analoog

Icom IC-F4262DT Digitaal+Analoog

dPMR VHF/UHF Digital Handheld Series with GPS
The Icom IC-F3262D handheld is a new radio series that combines a rugged, waterproof and dustproof construction with an in-built GPS receiver and IDAS dPMR digital technology.

NEW FEATURES
IDAS™ dPMR™ Features
The IC-F3262D series provides dPMR mode 1/2 operation. Compatibility with dPMR mode 3 operation planned. The following IDAS dPMR features are programmable.
• Individual/group call • All group call • Emergency • Call log • SDM (Short Data Message) • Status message • GPS • Stun, kill and revive • Digital voice scrambler • Digital colour code • Transparent data mode

Built-in GPS Receiver
The IC-F3262D series has an internally integrated GPS receiver*. Current position data can be attached to a voice or data (SDM, status or emergency signal) transmission and can be sent to dispatch stations*.
* Depending on version. * To show the received position data, an external PC application is required.

Man Down and Lone Worker Functions for Emergency Call
The integrated man down function* automatically sends an emergency signal when the transceiver is left in a horizontal position for a preset period. The lone worker function can also transmit an emergency signal when the radio is not operated for a preset period. These emergency signals can be sent with GPS position data* to alert your co-workers or dispatcher to any potential trouble.
* Depending on version.

800mW (typ.) Audio Output Power
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud 800mW (typ.) audio to receive all calls under noisy conditions.

New 14-pin Accessory Connector
The new 14-pin accessory connector enhances the IC-F3262D series performance and capabilities. The BTL amplifier audio can deliver 1000mW (typ.) of loud audio from the optional HM-184 speaker microphone. When using the optional OPC-1870 zone copy cable, the memory channels in the tactical group can be copied to another radio.

IP67 Waterproof and Dust-tight Protection
The IC-F3262D series provides outstanding protection against dust and water that is equivalent to IP67. The IC-F3261D series can withstand 1m depth of water for 30 minutes and its dust-tight construction keeps out powder dust, sand, mud etc.
* To guarantee the IP67 rating, the BP-232WP battery pack must be used with the IC-F3262D series. The “IP67” label is attached to the BP-232WP for an identification mark.

Analogue FM Mode Features
• 5-Tone, CTCSS and DTCS
• MDC 1200 compatible
• Inversion voice scrambler
• Basic LTR trunking
• Audio compander

Other Features
• 512 memory channels with 128 zones
• Dot-matrix, multi-function display
• Large 2300mAh (typ.) Lithium-Ion battery
• MIL-STD 810 G rugged construction
• Mode dependent scan and priority scan
• DTMF autodial
• Busy channel lockout, repeater lockout
• Talk around function
• Time-out-timer
• Escalating alarm
• Surveillance function
• Power on password
• Low battery alert
• New optional MB-130 vehicle charger bracket

Options and accessoires
• AD-106 : Adapter
• AD-118 : Accessory Connector
• AD-122 : Charger Adapter
• BC-119N : Charger
• BC-121N : Multi-charger
• BC-145 : Adapter
• BC-157S : AC Adapter
• BC-160 : Desktop Rapid Charger
• BC-171 : Regular Desktop Charger
• BC-197N : Multi-charger
• BP-232WP : Waterproof Li-Ion battery pack
• BP-240 : Battery case
• BP-261 : Battery Case
• CP-23L : Cigarette lighter cable
• FA-SC25U : Antenna
• FA-SC55V : Antenna
• FA-SC57U : Antenna
• FA-SC57VS : Antenna
• FA-SC73US : Antenna
• HM-184 : Waterproof speaker-microphone
• MB-130 : Vehicle charger bracket
• MB-93 : Belt Clip
• MB-94 : Belt clip
• MB-96F : Belt clip
• MB-96N : Belt clip
• OPC-515L : Cable
• OPC-656 : Cable
