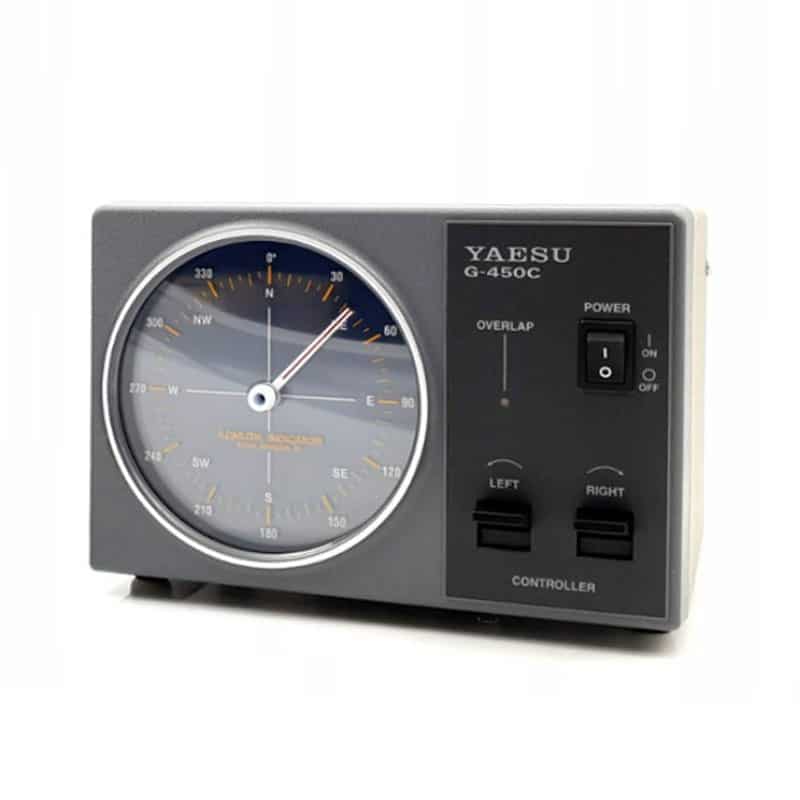

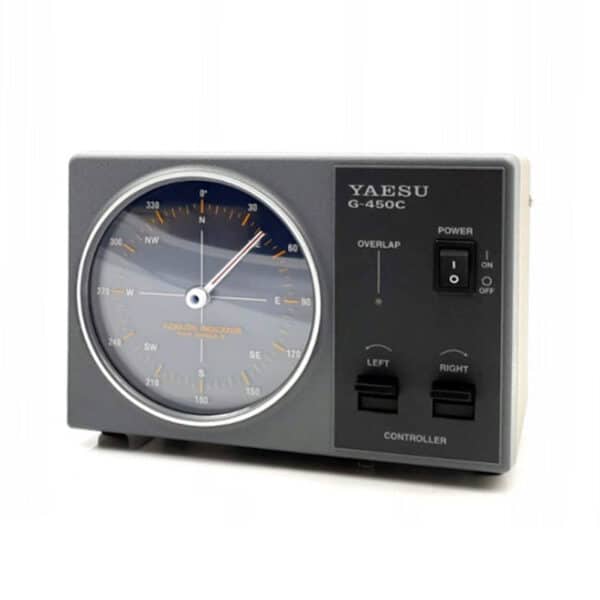

Yaesu G-450 CDC control unit/klok

Power Supply Voltage
117 VAC, 50-60 Hz

Power Supply Current Consumption
0.5 Amps

Rotor Voltage
24 VAC

Cable Conductors Required
5 6

360° Rotation Time (Non Loaded)
63 seconds at 50 Hz
0 51 seconds at 60 Hz

Rotation Range
450°

Rotation Torque
39.8 Ft-Lbs. (600 kgf-cm)

Braking Torque
3,000 kgf-cm

Maximum Vertical Load
242 Lbs. (100 kg) continuous
660 Lbs. (300 kg) momentary

Mast Outside Diameter
1.25-2.5 inches (32 to 63mm)

Braking Type
Mechanical stopper

Antenna K Coefficient
100 or less

Wind Loading Area
(Pole Type) 0.5 m2 or less
(Tower Type) 1.0 m2 or less

Maximum Continuous Duty
3 minutes

Operating Temperature Range
0°C to +40°C (Controller)
0 -20°C to +40°C (Rotator)

Rotator Dimension
186 x 263 mm

Rotator Weight
Approx. 3.5 kg

Controller Dimension (WHD)
190 x 125 x 150 mm

Controller Weight
Approx. 2.7 kg
