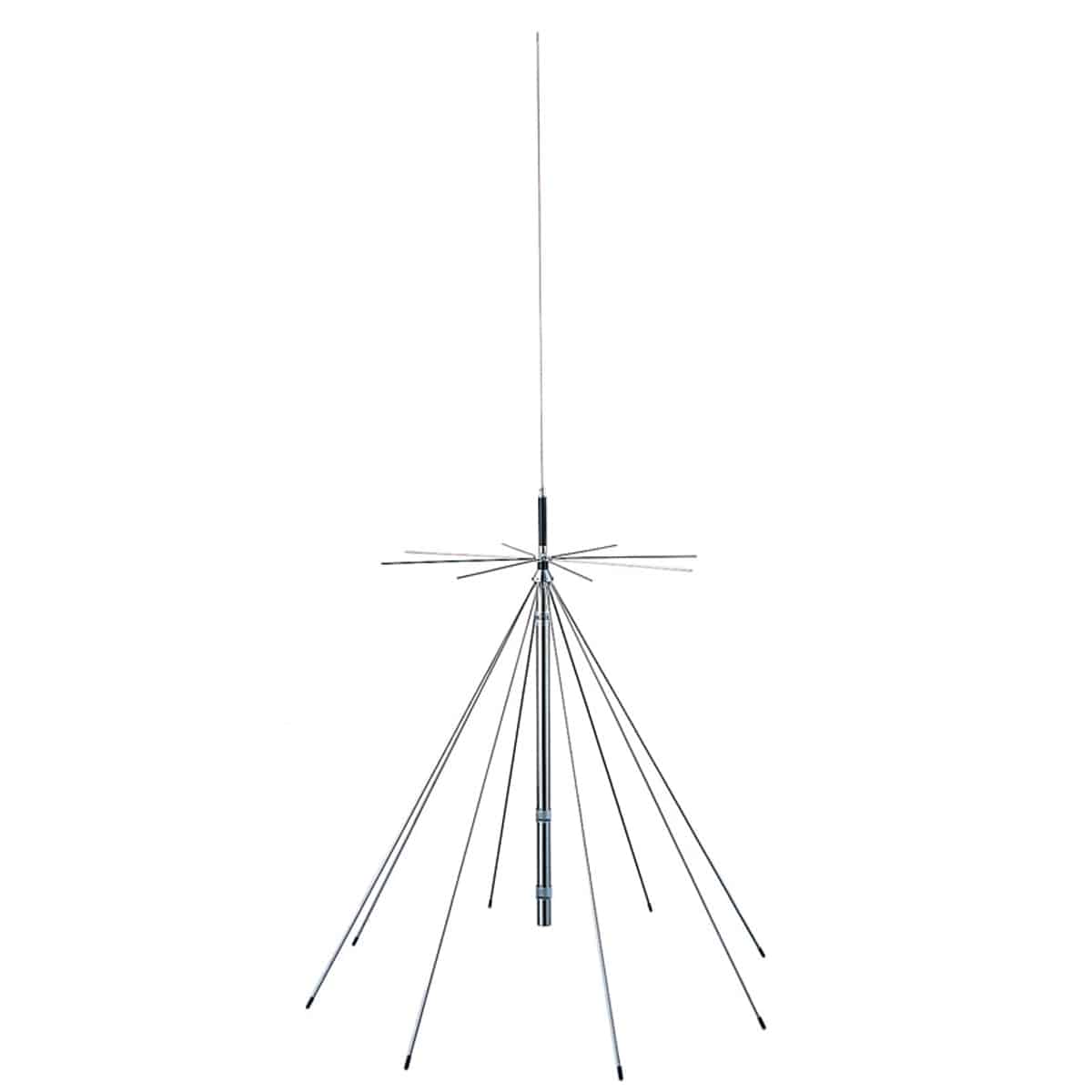

Super Discone Antenna D3000N (25-3000MHz for receiving) (50/144/430/904/1200MHz for transmitting)
The D3000N Super Discone Antenna is an ultra-wideband antenna covering amateur radio, commercial 2-way, cellular, air traffic control and various utility frequency bands. Rust-free stainless steel is employed in major component parts making the antenna rust resistant and durable.
Special Features:
• Ultra-wideband design 25 to 3000 MHz receive, 50-1200 MHz transmit (6m tunable for transmit)
• Compact and lightweight design enables antenna to be installed on balcony railing at an apartment or condominium
• Ideal for 2m, 1-1/4m, 70cm, 33cm and 23cm amateur bands
• Excellent “shop” antenna for testing various transmitters on a single coax
• Can be made further compact and lightweight by removing the top loading coil if 25-50 MHz reception is not required
N-Connector
Length: 1.7m / Weight:1kg
Max.diameter:Â 84cm
Impedance: 50Ω / Connector:NJ
Mast diameter accepted: φ25-50
Rated wind velocity: 40m/sec.
Max power rating:Â 20W(50MHz),200W(more than 144MHz)
