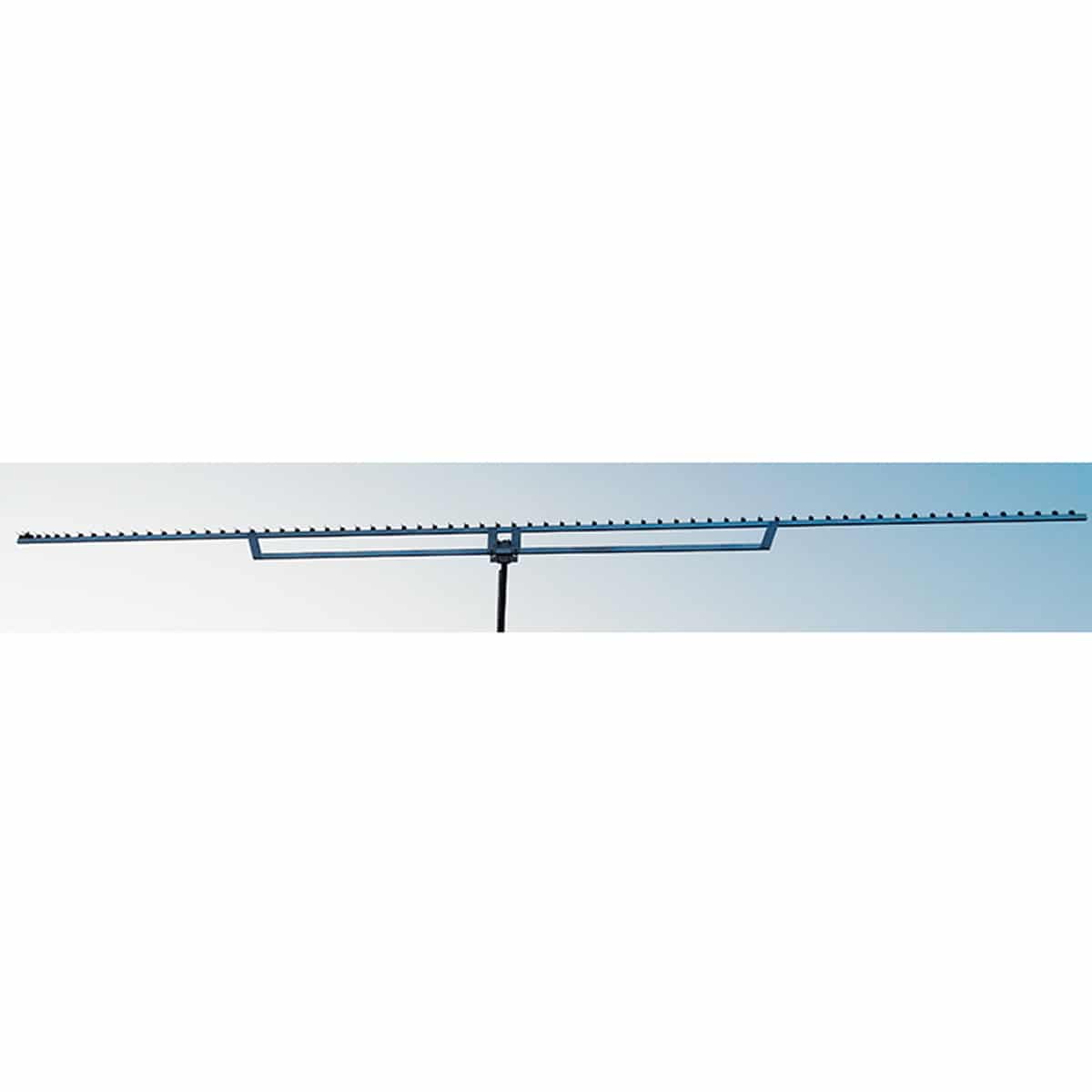

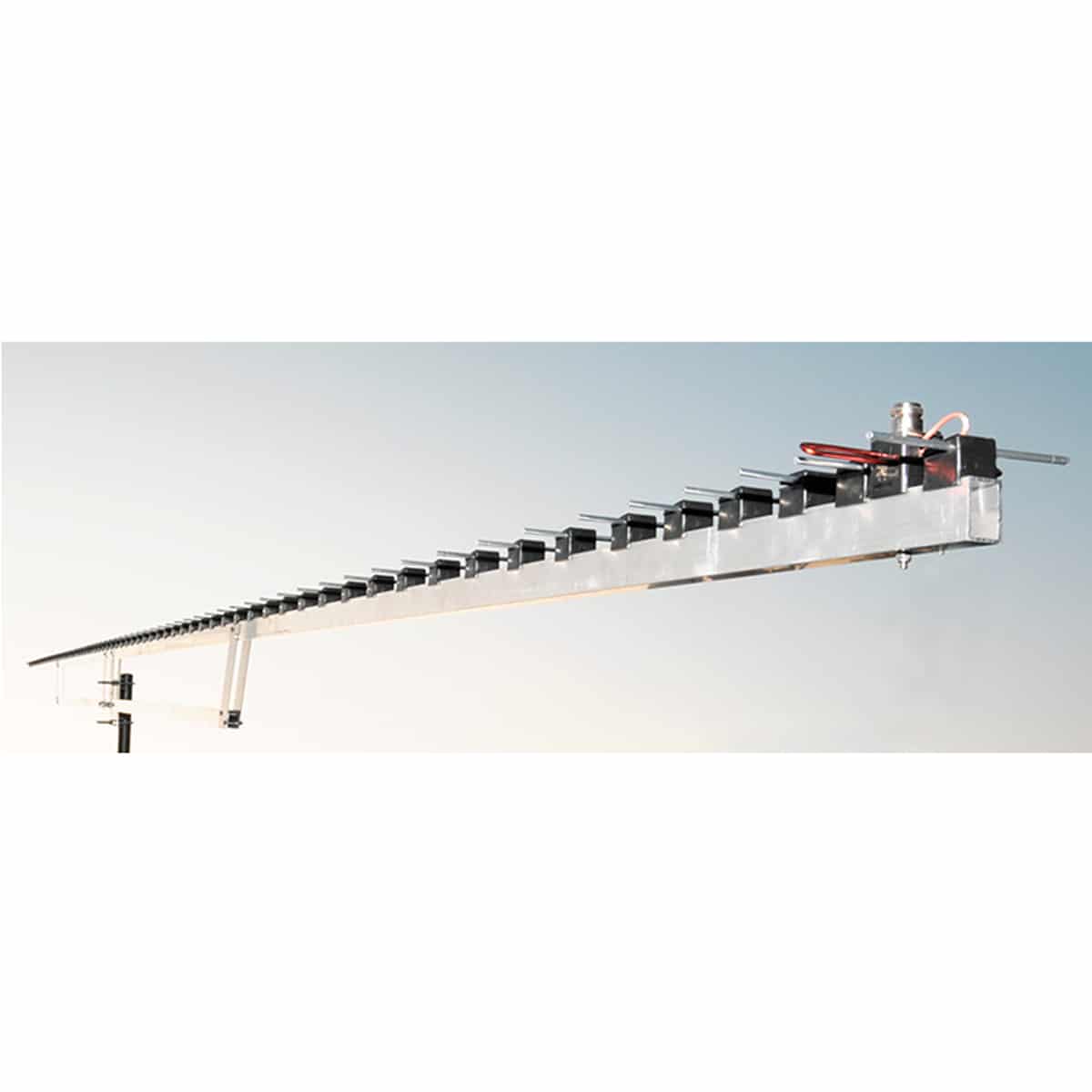

Highest performance, nice looking, biggest ever made 1296 MHz antenna. 6m long.
70elements provide maximum gain ever made on 23cm band.
Antenna free space gain 23.2 dBi.
| Electrical Specifications | |
| Frequency Range: | 1280 – 1320 MHz |
| Free Space Forward Gain: | 23.2 dBi |
| Front to Back Ratio: | 40 dB |
| 3 dB Horizontal Beamwidth: | 13° |
| Polarization: | Horizontal |
| Nominal Input Impedance: | 50 Ohm |
| Maximum SWR at any freq.: | 1 : 1.4 |
| Maximum Power Input: | 400 W |
| Connector: | “N” |
| Mechanical Specifications | |
| Boom length: | 6 m |
| Boom Diameter: | 30 x 20 mm |
| Longest element: | 112 mm |
| No. of elements: | 70 |
| Turning radius: | 3.3 m |
| Mounting Mast Diameter: | 43 – 54 mm |
| Survival Wind Speed: | 150 km/h |
| Weight: | 5 kg |
With good amplifier and preamplifier you can work EME with this single Yagi antenna.
Low noise design. Highest G/T. Maximum power input that provides UT-141 semirigid cable. The best antenna for EME expeditions and stationary work.
Aim antenna to the Moon and use WSJT to find friends around the World.
