OPRUIMING AANBIEDING van 3349.- voor 1995.-

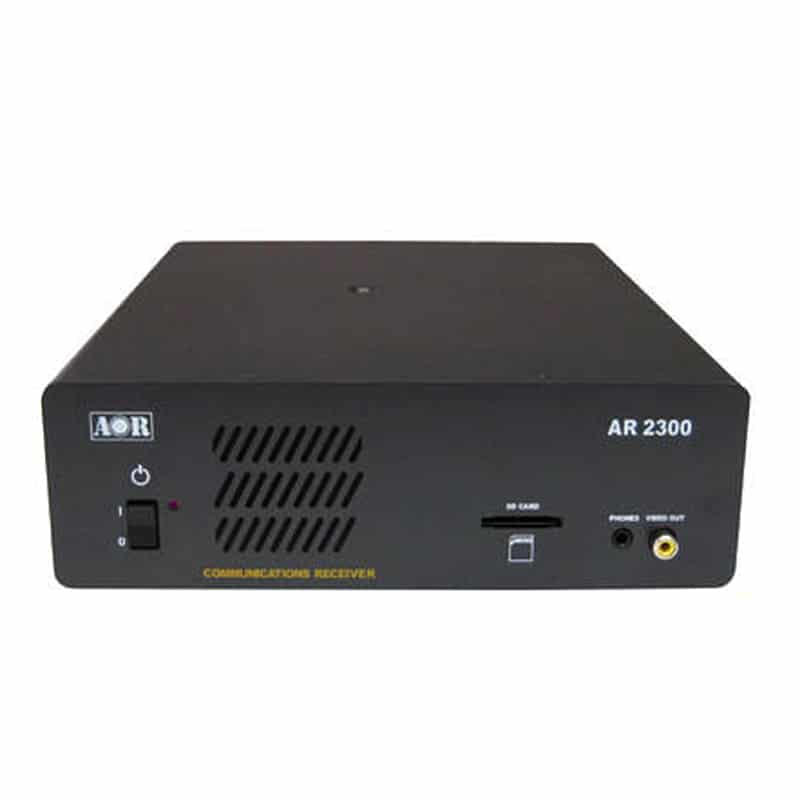

AORÂ AR-2300 IQ Special Edition – PC Controll All-Mode High Performance Communications Receiver 49kHz to 3.15GHz

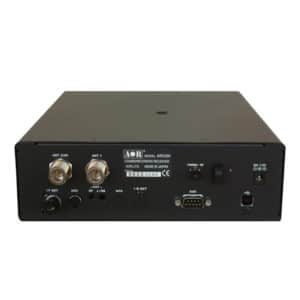

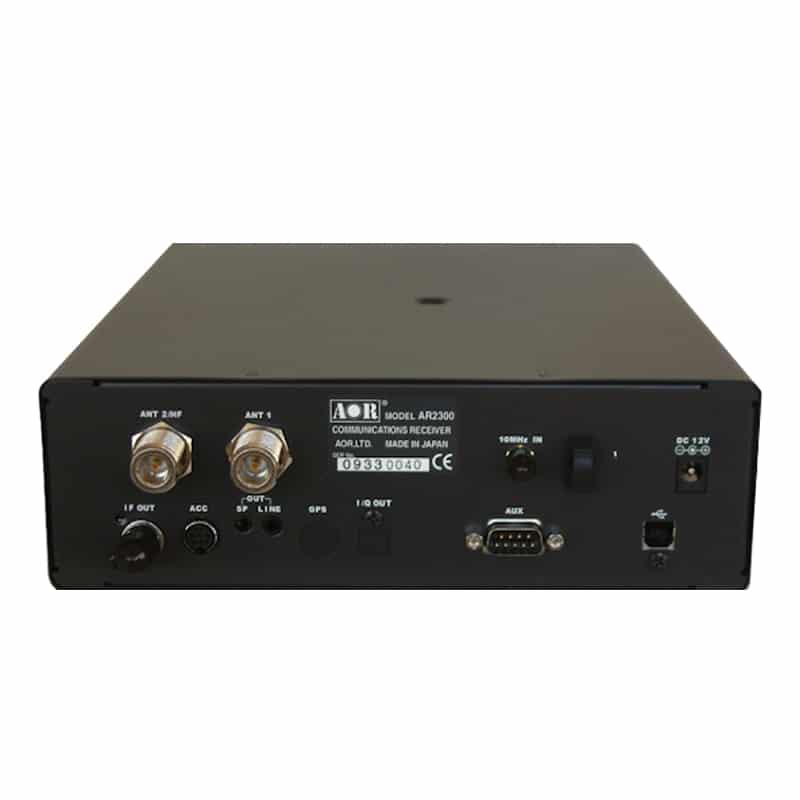

The basic version of the receiver does not have a traditional front panel, communication with a PC is carried out using an interface cable (both ports are present – RS 232 or USB) – the corresponding connectors are routed to the rear panel.
The AR 2300 receiver has several advantages:
* High sensitivity and wide dynamic range
* PC control provides ample opportunities and more functional flexibility
* The presence of a PC makes it possible to process the received radio signals using special software
* The set includes software for Windows and a complete list of control commands
* Small dimensions (200 W * 31 H * 230 D mm) and weight (1.3 kg)
– triple frequency conversion: 255.3 MHz (744.3) / 10.7 MHz / 455 kHz
– selectable tuning step: from 100 Hz to 100 kHz after 10 Hz
– side channel selectivity: not worse than 60 dB
– adjacent channel selectivity: not worse than 55 dB
– dynamic range: not worse than 90 dB
– frequency stability: ± 10 -6 in the temperature range 0-50 ° С
– audio output: 1.2 W (at a load of 8 ohms, with 10% distortion)
– power supply: 12-16 V; 0.5 A
– Antenna impedance: 50 Ohm
Features
Super wide coverage: 10 KHz ~ 3.3 GHz
(actual top frequency input is 3.394 GHz)
1000 memory channels
10 VFOs
Monitor AM, NFM, WFM, USB, LSB, CW, Data
Ultra-stable reference frequency oscillator
Two RS-232C ports plus control head port
Control up to 99 AR-ONE Units with one PC
support computer controlled
Triple conversion superheterodyne front end
Antenna input level readout
Adjustable BFO
High intercept
Multi IF signal output (10.7 MHz or 455 KHz)
Excellent sensitivity
Accuracy of 0.1 ppm from -10º ~ 50º C
