| Electrical Specifications 6m | |
| Frequency Range: | 50 – 50.5 MHz |
| Free Space Forward Gain: | 7 dBi |
| Front to Back Ratio: | 21 dB |
| 3 dB Horizontal Beamwidth: | 66.2° |
| Polarization: | Horizontal |
| Nominal Input Impedance: | 50 Ohms |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 1000 W |
| Matching Method: | Direct feed through common mode choke (current balun) |
| Connector: | “N” |
| Mechanical Specifications 6m | |

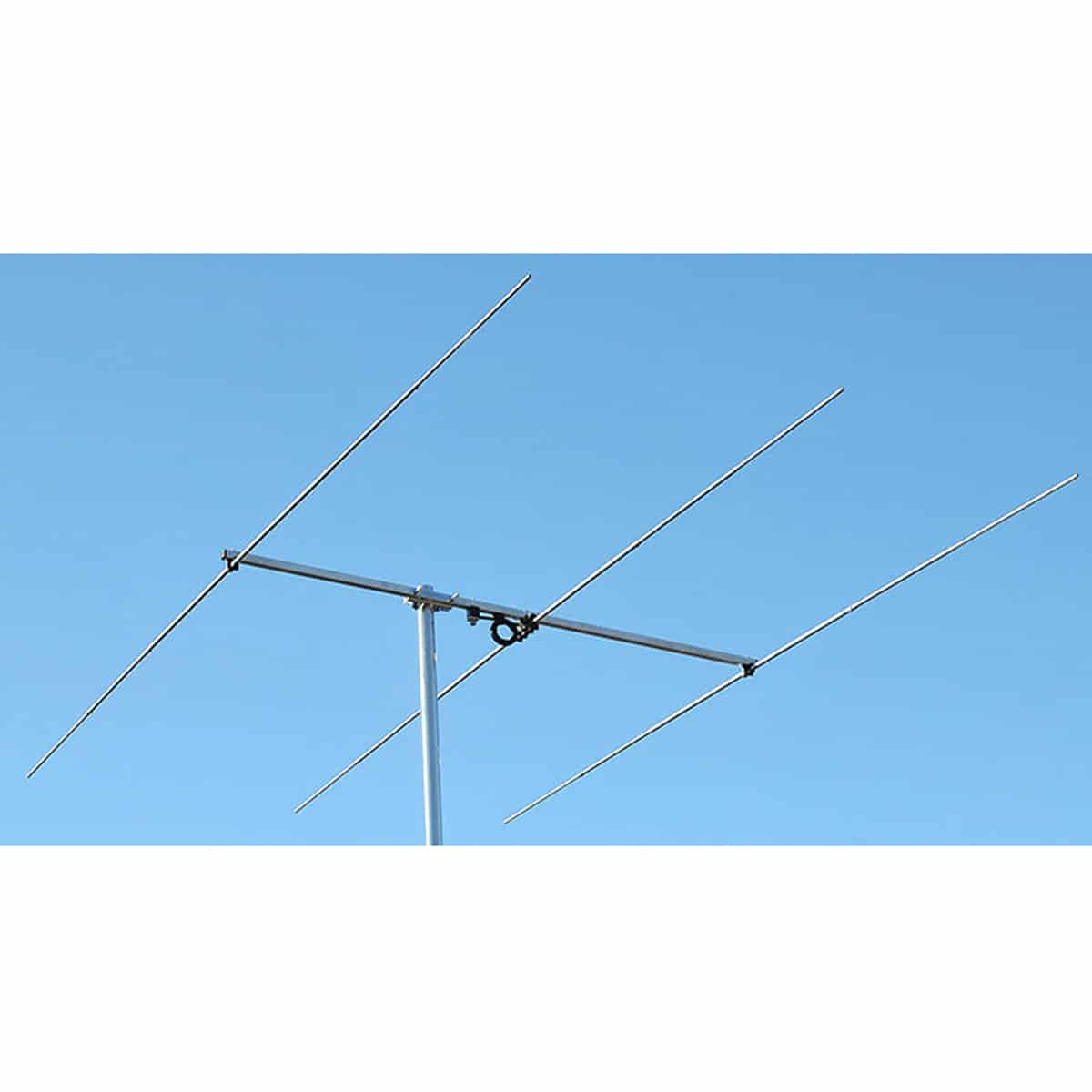

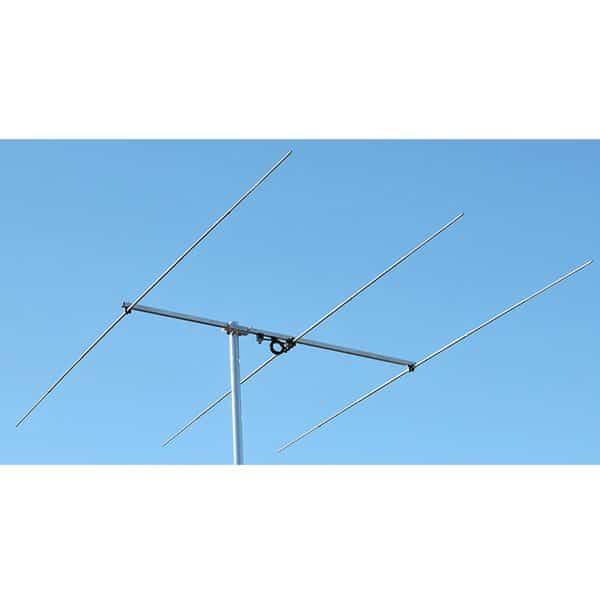

| Number of Elements: | 3 |
| Elements Diameter: | Tapered elements. Center tube 12mm, extensions 10 and 8mm |
| Dipole Diameter: | Tapered dipole. Center tube 12 mm, extensions 10 and 8 mm |
| Longest Element: | 3.1 m |
| Element Mounting Position: | Below the Boom |
| Balun and Connector: | Included |
| Boom Length: | 1.46 m |
| Boom Size: | 20 x 20 mm. |
| Number of Boom Pieces: | 1 |
| Guy rope support: | Not necessary |
| Mounting Mast Diameter: | 43 – 70 mm 1-1/4″ – 2-3/4″ |
| Clamp: | M8 Stainless Steel |
| Survival Wind Speed: | 150 km/h |
| Net Weight: | 1.75 kg |
| Gross Weight: | 2.9 kg |
| Transportation Length: | 1.5 m |
| Vertical Stacking Distance 2 antennas | Gain | F/B | Result: |
| 2.7 m | 9.8 dBi | 25 dB | +2.8 dB |
| 2.9 m | 10 dBi | 24 | +3 dB |
| 3.25 m | 10.3 dBi | 20 dB | +3.3 dB |
| Â Vertical Stacking distance 4 antennas | |||
| 2.7 m | 12.8 dBi | 23 dB | +5.8 dB |
| 2.9 m | 13 dBi | 22 dB | +6 dB |
| 3.1 m | 13.2 dBi | 21 dB | +6.2 dB |
| 3.25 m | 12.3 dBi | 19 dB | +6.3 dB |
