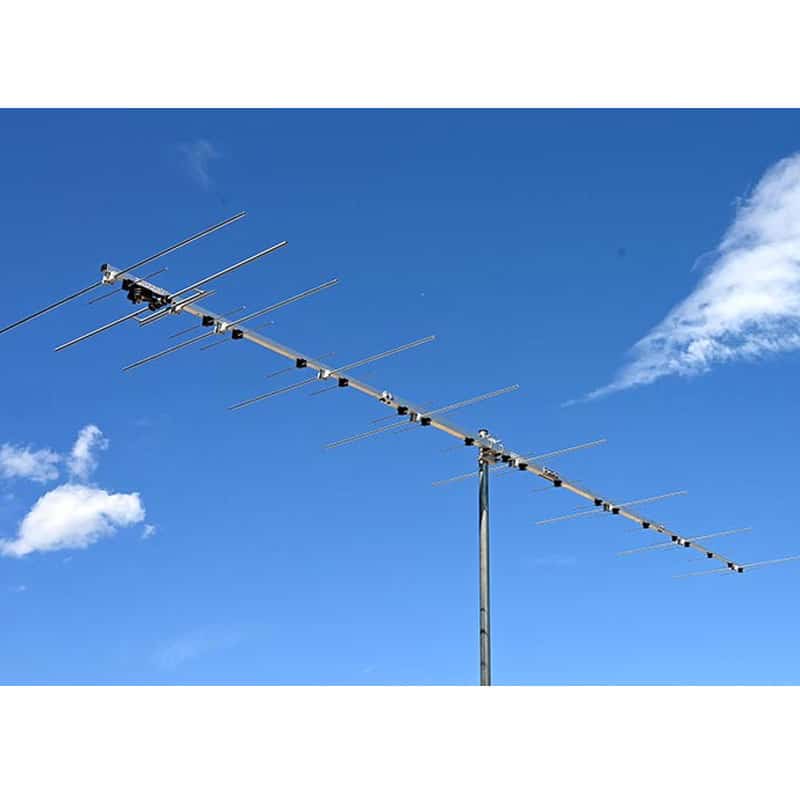

Light Weight 2m 70cm DualBand High Power Antenna 2m70cm29DXAP
Lightweight construction 2m 70cm DualBand High Power Antenna 2m70cm29DXAP with 29 elements. Maximum power input 1000 W on 144-146 MHz with 9 active elements and 750 W on 432-434 MHz with 20+1 active element. Very handy boom length of about 4.4 meters. Does not need guy rope support for stationary use. Because of quality construction with easy assembly, this antenna is suitable for portable use and two bands contesting with one transceiver. Two or four antennas in a stack are very efficient for competition and EME communications. Easy Moon Bounce on a single call and both bands.

What does 2m70cm29DXAP mean?
2m – Covers 144-146MHz frequency range
70cm – Covers 432-434MHz frequency range
29 – 29 elements. 9 elements on 2m and 20+1 element on 70cm
DX – Covers DX part of the 70cm band and 144-146MHz on the 2m band
A – Boom or element parts length up to 118cm or 47″ (for ANY transport)
P – High Power version of the antenna. 1000W on 2m and 750W on 70cm

2m70cm29DXAP could be produced in two versions:
SKU:1305 2m70cm29DXAP (this antenna)
SKU:1306 2m70cm29DXAPG by order with guy rope support. Useful in places with extreme wind or snow.

2m Electrical Specifications of 2m 70cm DualBand High Power Antenna 2m70cm29DXAP
Frequency Range: 144-146MHz
Free Space Forward Gain: 13.5dBi
Front-to-Back Ratio: 27dB
-3 dB Horizontal Beamwidth: 39.8°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 1000W
Matching Method: Voltage Balun
Connector: “N” (Common connector for both bands)

70cm Electrical Specifications of 2m 70cm DualBand High Power Antenna 2m70cm29DXAP
Frequency Range: 432 – 434MHz
Free Space Forward Gain: 16.9dBi
Front-to-Back Ratio: 28dB
-3 dB Horizontal Beamwidth: 21.2°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 750W
Matching Method: Voltage Balun
Connector: “N” (Common connector for both bands)

2m and 70cm mechanical specifications of 2m70cm29DXAP
2m Number of Elements: 9
70cm Number of Elements: 20+1
2m Elements Diameter: 8 mm aluminum pipe
70cm Elements Diameter: 4 mm rod
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest Element: 1030 mm
Element Mounting Position: Below the Boom
Balun and Connector: Included
Boom Length: 4.35 m
Tapered Boom: 20x20mm, 30x30mm, 20x20mm
Number of Boom Pieces: 2 or 3
Turning Radius: 1.8 meter
Guy Rope Support: Not necessary. Strong boom
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Clamp: M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 4.6 kg
Gross Weight: 6 kg
Transportation Length: 1.2m
