| Electrical Specifications PA144-10-6AGP | |
| Frequency Range: |
144 – 145 MHz |
| Free Space Forward Gain: | 14.8 dBi |
| Front to Back Ratio: |
35 dB |
| 3 dB Horizontal Beamwidth: | 35.3° |
| 3 dB Vertical Beamwidth: | 38.5° |
| G/T for Tsky=290K and Tearth=5400K | -5.31 dB |
| Polarization | Horizontal |
| Nominal Input Impedance: | 50 Ohms |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 1500 W |
| Matching Method: | Direct feed through common mode choke (current balun) |
| Connector: | “N” |
| Mechanical Specifications PA144-10-6AGP | |
| Number of elements: | 10 |
| Element Diameter: | 8 mm Aluminum tube |
| Dipole Diameter: | 8 mm Hard Copper tube |
| Longest element: | 1040 mm |
| Element Mounting Position: | Below the Boom |
| Balun and Connector: | Included |
| Boom Length: | 5.72 m |
| Boom Size: | Tapered Boom 40×40 mm, 30×30 mm, 20×20 mm |
| Number of Boom Pieces: | 5 |
| Guy rope support: | Yes, included |
| Mounting Mast Diameter: | 43 – 70 mm 1-1/4″ – 2-3/4″ |
| Survival Wind Speed: | 180 km/h |
| Transportation Length: | 1.2 m |
| Antenna Weight: | 8 kg |
| Gross Weight: | Â 9.8 kg |
Best low noise 2m Yagi antenna by Latest VE7BQH Table PA144-10-6AGP. Excellent G/T -5.31dB
Horizontal stacking distances. G/T reference Tsky=290 K Tearth=5400 K
| 2 Antennas | 3.60 m. Gain 17.75 dBi (+2.95 dB), G/T -8.34 dB |
| 4 Antennas | 3.60 m. Gain 20.75 dBi (+5.95 dB), G/T -5.35 dB |
| 8 Antennas | 3.60 m. Gain 23.75 dBi (+8.95 dB), G/T -2.33 dB |
Vertical stacking distances for BEST G/T. G/T reference Tsky=290 K Tearth=5400 K
| 2 Antennas | 3.10 m. Gain 17.65 dBi (+2.85 dB), G/T -8.41 dB |
| 4 Antennas | 3.10 m. Gain 20.6 dBi (+5.8 dB), G/T -4.97 dB |
| 8 Antennas | 3.20 m. Gain 23.65 dBi (+8.85 dB), G/T -1.75 dB |
Stacking distance 4 antennas in “H” configuration for BEST G/T
3500 mm / 2900mm. Gain 20.56 dBi G/T -5.31dB. Used by VE7BQH Antenna performance table.
Extreme low noise antenna for VHF competitions on 144 MHz and EME PA144-10-6AGP.
Excellent gain and maximum suppression of all side lobes.Â
Clean azimuth radiation pattern
144.1 MHz low noise Yagi antenna PA144-10-6AGP. Elevation radiation pattern.
144MHz best G/T -5.31dB DX expeditions Yagi antenna PA144-10-6AGP.

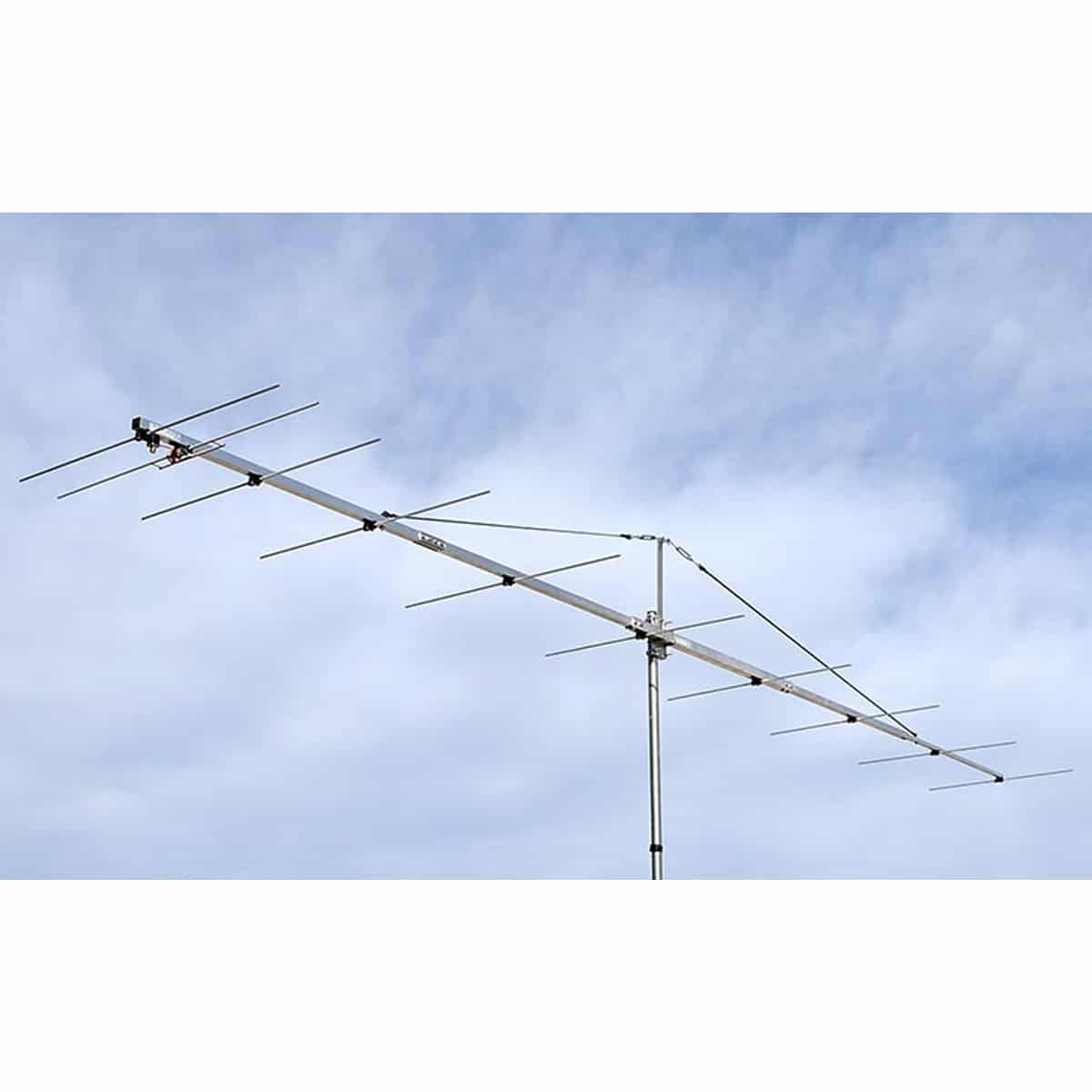

2m the best EME contest Yagi antenna PA144-10-6AGP low noise and best G/T elements UP with guy rope support. Boom parts 118cm.
2m contest antenna with G/T -5.31dB. Extreme low noise pickup. Hairpin dipole, Teflon balun and “N” connector detail. PA144-10-6AGP
By order. 144MHz the best G/T low noise Yagi antenna PA144-10-6AGP reversed dipole hair pin elements UP Teflon balun detail. For easy stacking.
Ultimate design with with latest professional full-3D electromagnetic modelling software. Precision design not possible with amateurish programs like EZNEC Pro/4 – NEC4.2 engine, 4NEC2, EZNEC v 6.0 or AO.
