| Electrical Specifications 2 meter | |
| Frequency Range: | 144 – 145 MHz |
| Free Space Forward Gain: | 14.4 dBi |
| Front to Back Ratio: | 30 dB |
| 3 dB Horizontal Beam width: | 36° For Horizontal Antenna |
| 3 dB Vertical Beam width: | 39.6° For Horizontal Antenna |
| G/T | tbd. |
| Polarization: | With two same cables Horizontal* |
| Distance Between Dipoles: | 520 mm |
| Degrees: | 90° |
| Isolation Between Antennas (Coupling): | More than 30 dB |
| Nominal Input Impedance: | 50 Ohms |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 2000 WÂ for both antennas (1000 W per Antenna) |
| Matching Method: | Direct feed through common mode Baluns |
| Connectors: | 2 x “N” |
| Mechanical Specifications 2 meter: | |
| Number of elements: | 20 (10 + 10) |
| Element Diameter: | 8 mm Aluminum tube |
| Dipole Diameter: | 8 mm Hard Copper tube |
| Longest element: | 1050 mm |
| Element Mounting Position: | On Both Sides |
| Baluns and Connectors: | Included |
| Boom Length: | 5.47 m |
| Single Antenna Length: | 4.91 m |
| Boom Size: | Tapered Boom 40 x 40 mm + 30 x 30 mm |
| Number of Boom Pieces: | 4 |
| Guy rope support: | Not Necessary |
| Mounting Mast Diameter: | 43 – 70 mm 1-1/4″ – 2-3/4″ |
| Survival Wind Speed: | 150 km/h |
| Transportation Length: | 1.49 m |
| Antenna Weight: | 9.6 kg |
* With Polarization Switch choice for Horizontal, Vertical, RHCP or LHCP.
2 meter XPOL Yagi Antenna 20 element. Dipoles, connectors, Teflon cable baluns details. Maximum power 1000 W or more per dipole and 2000 W per antenna.
10 + 10 element 144 MHz XPOL Low Noise Yagi antenna with high suppression of all sidelobes. XPOL Label.
Use Android QRDROID to discover what is on label.

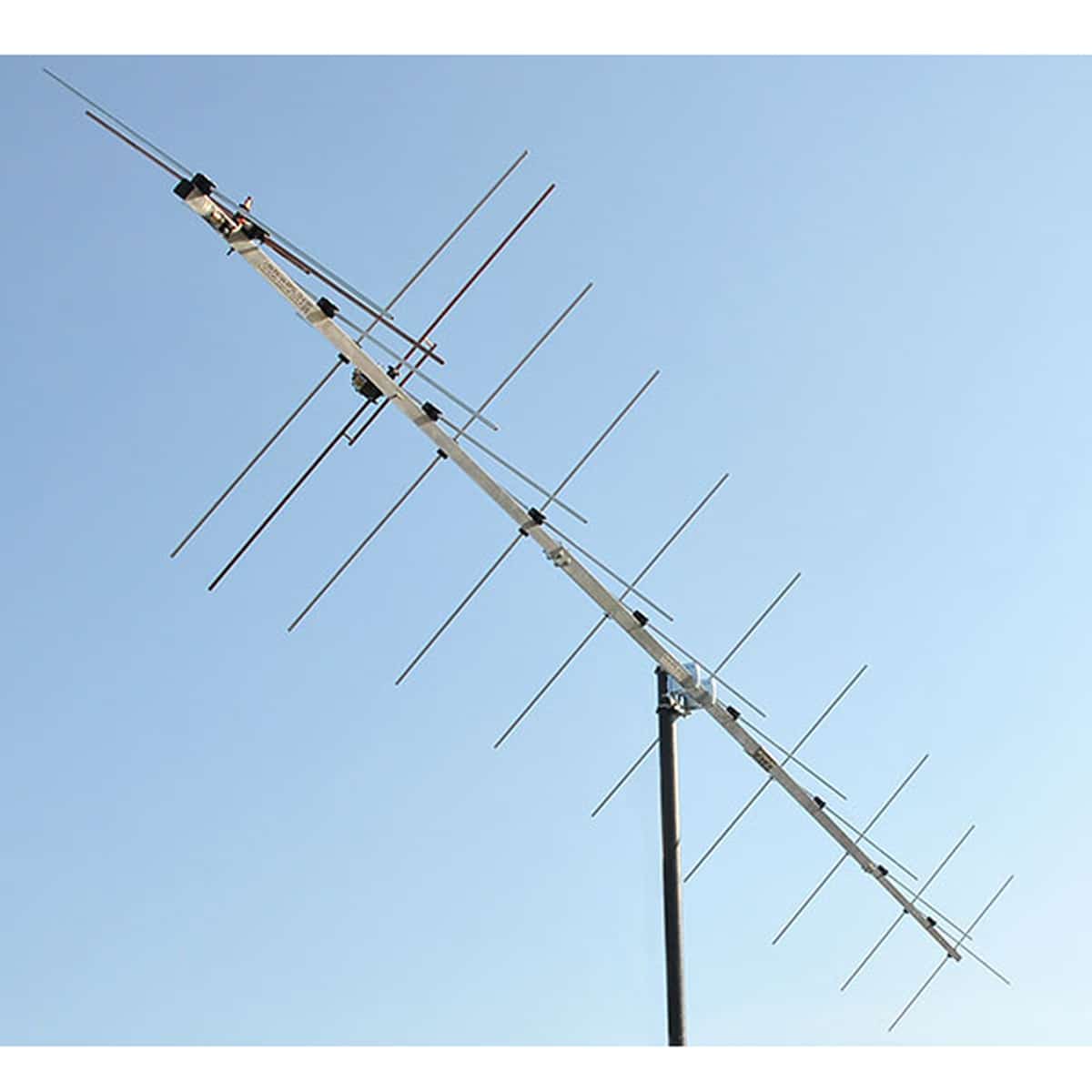

2m Low Noise Yagi Antenna PA144-XPOL-20-6. Antenna view.
Use fiberglass or plastic mast.
2 meter Low noise Contest – EME WSJT MAP65 or MS Yagi antenna 10 + 10 XPOL elements (20 elements).
XPOL VHF Contest and EME Yagi antenna. Excellent Low Noise Characteristics. Side View.
